Each axle stroke:X/Y/Z 450/350/300 mm
Tank: long / wide / high 800/550/340mm
Longmen type machine tool structure, humanized operation, extremely compact structure, continuous automation

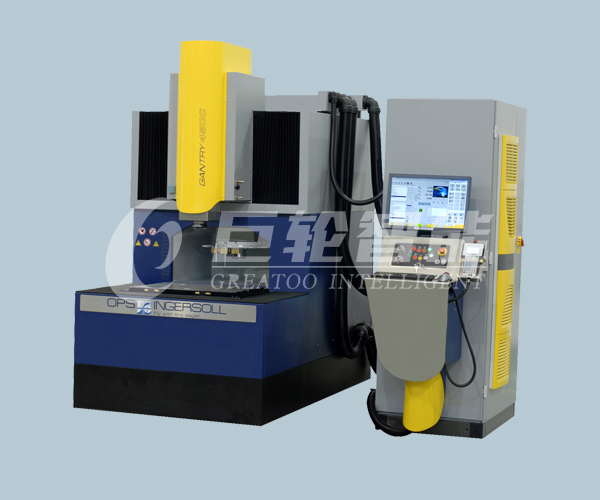

Gantry 450 c precision CNC edm machine adopts the appearance of the golden section proportion design modelling,
colour collocation symmetry, coordination, luxurious, atmosphere,
The telescopic shaft protection design to ensure the security of the machine tool operation.Longmen type machine tool structure, humanized operation, extremely compact structure,
continuous automation Graphite is rough machining material removal rate doubled
|
机床/Machine tool |
|
|
机床重量/Weight of machine tool |
4500kg |
|
电柜重量/Weight of electric cabinet |
640kg |
|
输入功率/Input power |
16kVA |
|
熔断�；さ缌�/Fuse protection current |
32A |
|
主电压/频率/Main voltage / frequency |
400/50 V/Hz |
|
事情油箱/Working oil tank |
|
|
类型/Type |
整体升降/Integral lifting |
|
事情油箱内部尺寸（长xk宽x高)/Working oil tank inner size (long x wide x high) |
800x550x340mm |
|
最大液面高度可编程/自动/Maximum height of the liquid level can be programmed / automatic |
300mm |
|
事情头部/Working head |
|
|
最大电极重量/Maximum electrode weight |
100kg |
|
事情台到卡盘基准距离 最小/最大/Table to chuck the reference distance minimum / maximum |
150/450mm |
|
事情台/workbench |
|
|
事情台尺寸（长x宽）/Table size (length x width) |
700x520mm |
|
最大工件重量/Maximum weight of workpiece |
1000kg |
|
行程/Trip |
|
|
X/Y/Z在加工槽内的行程/X/Y/Z stroke in the processing slot |
450x350x300mm |
|
Y（电极交流和装卸时行程）/Y (electrode exchange and loading and unloading trip) |
350mm |
|
控制系统/Control system |
|
|
PC-NC对话/PC-NC dialogue |
2x32bit |
|
驱动类型/Drive type |
数字交流伺服电机/Digital AC servo motor |
|
XYZ轴移动速率（标准设置）/XYZ axis movement speed (standard configuration) |
最大5000mm/min/Max 5000mm/min |
|
集油槽/Oil sump |
|
|
过滤单位/Filter unit |
筒（内置）/Cylinder (built in) |
|
过滤面积/Filtration area |
16㎡ |
|
集油箱总容量/Total tank capacity |
370ltr |
|
电源 |
|
|
类型/Type |
脉冲形状自顺应控制/Adaptive pulse shape control |
|
最大事情电流/Maximum operating current |
60A |
|
特殊特点/Additional features |
|
|
润滑系统/lubrication system |
标准设置/Standard configuration |
|
冷却系统/Cooling system |
标准设置/Standard configuration |
|
自动灭火装置/Automatic fire extinguishing device |
标准设置/Standard configuration |
