The axis stroke:X/Y/Z 1250/2350/700 mm
Tank: long/wide/high 1510/2570/790 mm
Suitable for: car interior/mold design; The fuselage, fuel tanks and shock; To protect the new idea

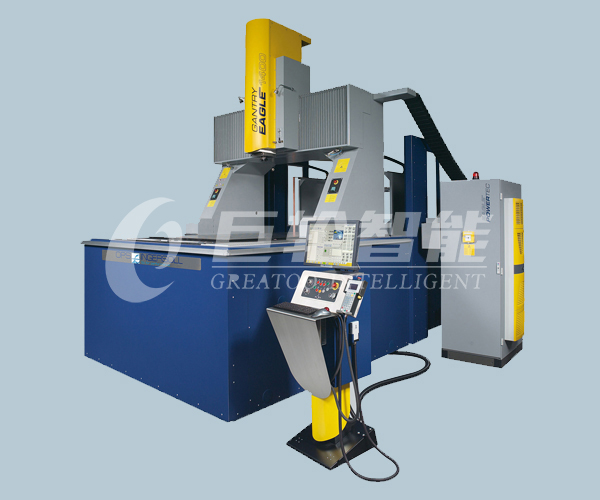

Large gantry precision CNC edm machine. Higher material removal rate and electrode decreased significantly, the latest research and development of EAGLE POWER TEC POWER supply for the first time in the world scope, the adaptive pulse form, each put electric pulse contained the discharge site conditions of ideal energy.
|
机床/Machine tool |
|
|
机床重量/Weight of machine tool |
19000kg |
|
电源重量/Power supply weight |
640kg |
|
电源功率/Power supply |
23KVA |
|
继电/Relay |
40A |
|
电压/频率/Voltage / frequency |
400/50 |
|
事情槽/Working groove |
|
|
类型/Type |
整体升降/Integral lifting |
|
事情槽内部尺寸（长x宽x高）/Internal size of working groove (long x width x height) |
1510x2570x790mm |
|
最大液面高度可编程/自动/Maximum height of the liquid level can be programmed / automatic |
740mm |
|
事情头部/Working head |
|
|
最大工件托盘重量/Maximum weight of workpiece |
300kg |
|
事情台到装置版距离最小/最大/Working table to install version distance min / Max |
200/900(500/1200)mm |
|
C轴/C axis |
|
|
转速（可调理）/Speed (adjustable) |
1-20min |
|
最小指令值/Minimum instruction |
0,001° |
|
最大手动电极交流重量/Maximum manual electrode exchange weight |
50kg |
|
最大自动电极交流重量/Maximum automatic electrode exchange weight |
25kg |
|
最大运动惯量/Maximum motion inertia |
0,4kg/㎡ |
|
扭矩/Torque |
25Nm |
|
事情台/workbench |
|
|
事情台尺寸（长x宽）able size (length x width) |
1340x2410mm |
|
最大工件重量/Maximum weight of workpiece |
10000kg |
|
行程/Trip |
|
|
X/Y/Z在加工槽内的行程/X/Y/Z stroke in the processing slot |
1250x2350x700mm |
|
Y（电极交流和装卸时行程）/Y (electrode exchange and loading and u |
2700mm |
|
控制系统/Control system |
|
|
PC-NC对话/PC-NC dialogue |
2x32bit |
|
驱动类型/Drive type |
数字交流伺服电机/Digital AC servo motor |
|
XYZ轴移动速率/XYZ axis movement speed |
Max5000mm/min |
|
最大高速抬刀速率/Maximum high speed lift |
18000mm/min |
|
事情液箱/Working liquid box |
|
|
滤芯类型/Type of filter element |
筒（内置）/Cylinder (built in) |
|
过滤面积/Filtration area |
32㎡ |
|
事情液箱总容量/Total tank capacity |
6000ltr |
|
电极交流系统/Electrode exchange system |
|
|
类型/Type |
旋转盘/Rotating disk |
|
电极库（可� 。�/Electrode Bank (optional) |
15（30/48） |
|
团结电极库作为选配/Combined electrode bank as an option |
2/18、4/18 |
|
允许电极重量/Allowable electrode weight |
|
|
-简单电极/Single electrode |
25kg |
|
-总体重量/Total weight |
150(200)kg |
|
电源/Power Supply |
|
|
类型/Type |
脉冲形状自顺应控制/Adaptive pulse shape control |
|
最大事情电流(选配)/Maximum operating current（optional) |
60（110）A |
|
特殊特点/Additional features |
|
|
自动中央润滑/Automatic central lubrication |
标准设置/Standard configuration |
|
冷却系统、功率/Cooling system, power |
12KW |
|
CO2灭火装置（D1D14497）灭火剂容量/Capacity of CO2 fire extinguishing equipment (D1D14497) |
30kg |
